NdFeB Magnet

Home / NdFeB Magnet/ NdFeB Magnet
BEST SELLER

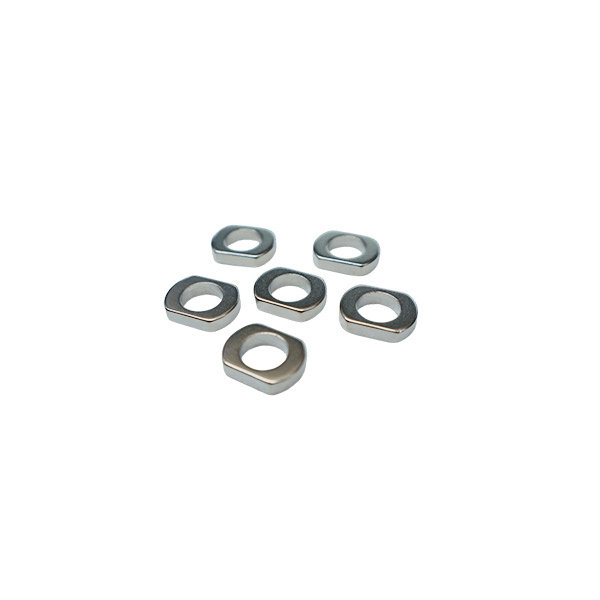

NdFeB Magnet
▶

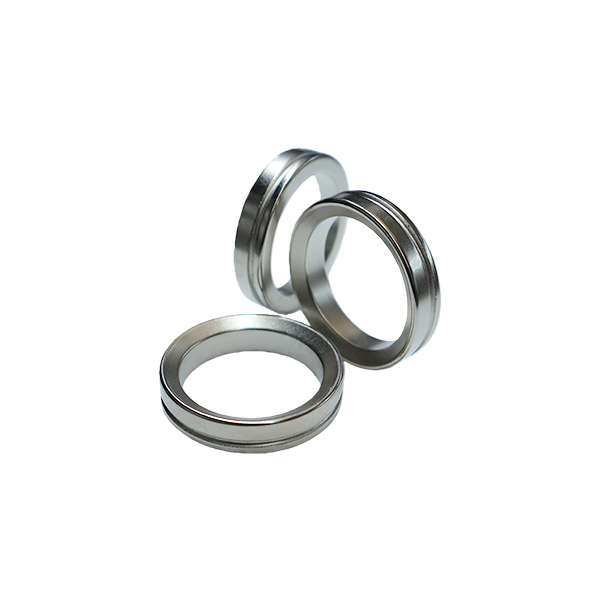

NdFeB Magnet

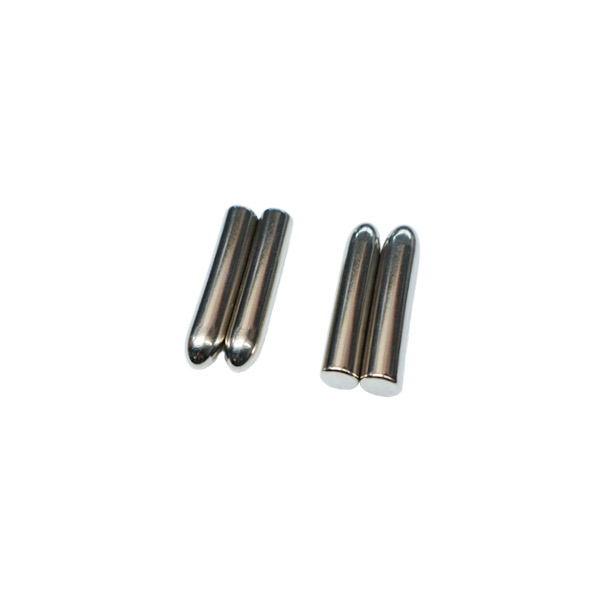

NdFeB Magnet
NdFeB Magnet
NdFeB Magnet
NdFeB Magnet

NdFeB Magnet

NdFeB magnets, also known as neodymium magnets, are rare-earth permanent magnets made from an alloy of neodymium, iron, and boron. They are the strongest commercially available permanent magnets, offering extremely high magnetic energy products.

Custom Requirements Technical Documents Message us on WhatsApp

Features

Exceptional Magnetic Strength NdFeB magnets offer the highest magnetic energy among commercially available permanent magnets.
Compact Design High magnetic strength allows smaller, lighter components in motors, actuators, and electronics.
Versatile Shapes Available in sintered or bonded forms, supporting complex geometries and custom magnetization patterns.
High Energy Product Provides strong magnetic flux density for efficient performance in demanding applications.
Corrosion Sensitive Requires protective coatings such as nickel, zinc, or epoxy to prevent oxidation.
Brittle Material Fragile and prone to chipping, requiring careful handling and grinding for finishing.
Wide Temperature Range Options Special grades are available for high-temperature applications up to 200°C or more.
Broad Applications Used in motors, generators, sensors, actuators, magnetic bearings, speakers, and consumer electronics.

Specifications

Technical data of sintered NdFeB Radial ring
Material Grade Remanence Coercive Force Intrinsic Coercive Maximum Energy Product Maximum
Working Temp
Br Hcb Hcj (BH)max Tw.
mT kGs kA/m kOe kA/m kOe kJ/m3 MGOe (℃)
Sintered
NdFeB
Radial ring		 N35 1170-1220 11.7-12.2 868 10.9 955 12.0 263-287 33-36 80
N38 1220-1250 12.2-12.5 899 11.3 955 12.0 287-310 36-39 80
N40 1250-1280 12.5-12.8 923 11.6 955 12.0 302-326 38-41 80
N42 1280-1320 12.8-13.2 923 11.6 955 12.0 318-342 40-43 80
N45 1320-1370 13.2-13.7 876 11.0 955 12.0 342-366 43-46 80
N35M 1170-1220 11.7-12.2 868 10.9 1114 14.0 263-287 33-36 100
N38M 1220-1250 12.2-12.5 899 11.3 1114 14.0 287-310 36-39 100
N40M 1250-1280 12.5-12.8 923 11.6 1114 14.0 302-326 38-41 100
N42M 1280-1320 12.8-13.2 955 12.0 1114 14.0 318-342 40-43 100
N45M 1320-1370 13.2-13.7 995 12.5 1114 14.0 342-366 43-46 100
N35H 1170-1220 11.7-12.2 868 10.9 1353 17.0 263-287 33-36 120
N38H 1220-1250 12.2-12.5 899 11.3 1353 17.0 287-310 36-39 120
N40H 1250-1280 12.5-12.8 923 11.6 1353 17.0 302-326 38-41 120
N42H 1280-1320 12.8-13.2 955 12.0 1353 17.0 318-342 40-43 120
N45H 1320-1370 13.2-13.7 971 12.2 1353 17.0 342-366 43-46 120
N35SH 1170-1220 11.7-12.2 876 11.0 1592 20.0 263-287 33-36 150
N38SH 1220-1250 12.2-12.5 907 11.4 1592 20.0 287-310 36-39 150
N40SH 1250-1280 12.5-12.8 939 11.8 1592 20.0 302-326 38-41 150
N42SH 1280-1320 12.8-13.2 971 12.2 1592 20.0 318-342 40-43 150
N30UH 1080-1130 10.8-11.3 812 10.2 1990 25.0 223-247 28-31 180
N33UH 1130-1170 11.3-11.7 852 10.7 1990 25.0 247-271 31-34 180
N35UH 1170-1220 11.7-12.2 860 10.8 1990 25.0 263-287 33-36 180
Technical data of sintered NdFeB
Material Grade Remanence Coercive Force Intrinsic Coercive Maximum Energy product Maximum
working temp
Br Hcb Hcj (BH)max Tw.
mT kGs kA/m kOe kA/m kOe kJ/m3 MGOe (℃)
Sintered NdFeB N28 1040-1090 10.4-10.9 796 10.0 955 12.0 199-223 25-28 80
N30 1080-1130 10.8-11.3 796 10.0 955 12.0 223-247 28-31 80
N33 1130-1180 11.3-11.8 836 10.5 955 12.0 247-271 31-34 80
N35 1180-1230 11.8-12.3 868 10.9 955 12.0 263-287 33-36 80
N38 1230-1260 12.3-12.6 899 11.3 955 12.0 287-310 36-39 80
N40 1260-1290 12.6-12.9 923 11.6 955 12.0 302-326 38-41 80
N42 1290-1330 12.9-13.3 915 11.5 955 12.0 318-342 40-43 80
N45 1330-1370 13.3-13.7 915 11.5 955 12.0 342-366 43-46 80
N48 1370-1420 13.7-14.2 915 11.5 955 12.0 366-390 46-49 80
N50 1390-1450 13.9-14.5 915 11.5 955 12.0 374-406 47-51 80
N52 1420-1480 14.2-14.8 915 11.5 955 12.0 390-422 49-53 80
N54 1450-1500 14.5-15.0 915 11.5 955 12.0 398-430 50-54 80
N56 1470-1520 14.7-15.2 915 11.5 955 12.0 406-446 51-56 80
N58 1490-1550 14.9-15.5 836 10.5 876 11.0 422-462 53-58 60
N30M 1080-1130 10.8-11.3 796 10.0 1114 14.0 223-247 28-31 100
N33M 1130-1180 11.3-11.8 836 10.5 1114 14.0 247-271 31-34 100
N35M 1180-1230 11.8-12.3 868 10.9 1114 14.0 263-287 33-36 100
N38M 1230-1260 12.3-12.6 899 11.3 1114 14.0 287-310 36-39 100
N40M 1260-1290 12.6-12.9 923 11.6 1114 14.0 302-326 38-41 100
N42M 1290-1330 12.9-13.3 955 12.0 1114 14.0 318-342 40-43 100
N45M 1330-1370 13.3-13.7 995 12.5 1114 14.0 342-366 43-46 100
N48M 1370-1420 13.7-14.2 1019 12.8 1114 14.0 358-390 45-49 100
N50M 1390-1450 13.9-14.5 1035 13.0 1114 14.0 374-406 47-51 100
N52M 1420-1480 14.2-14.8 1035 12.5 1114 14.0 390-422 49-53 100
N55M 1450-1520 14.5-15.2 971 12.2 1035 13.0 398-446 50-56 90
N30H 1080-1130 10.8-11.3 796 10.0 1353 17.0 223-247 28-31 120
N33H 1130-1170 11.3-11.7 836 10.5 1353 17.0 247-271 31-34 120
N35H 1170-1220 11.7-12.2 868 10.9 1353 17.0 263-287 33-36 120
N38H 1220-1250 12.2-12.5 899 11.3 1353 17.0 287-310 36-39 120
N40H 1250-1280 12.5-12.8 923 11.6 1353 17.0 302-326 38-41 120
N42H 1280-1320 12.8-13.2 955 12.0 1353 17.0 318-342 40-43 120
N45H 1330-1370 13.3-13.7 971 12.2 1353 17.0 342-366 43-46 120
N48H 1370-1420 13.7-14.2 1027 12.9 1353 17.0 358-390 45-49 120
N50H 1390-1450 13.9-14.5 1035 13.0 1353 17.0 374-406 47-51 120
N52H 1420-1480 14.2-14.8 1075 13.5 1274 16.0 382-414 48-52 110
N30SH 1080-1130 10.8-11.3 804 10.1 1592 20.0 223-247 28-31 150
N33SH 1130-1170 11.3-11.7 844 10.6 1592 20.0 247-271 31-34 150
N35SH 1170-1220 11.7-12.2 876 11.0 1592 20.0 263-287 33-36 150
N38SH 1220-1250 12.2-12.5 907 11.4 1592 20.0 287-310 36-39 150
N40SH 1250-1280 12.5-12.8 939 11.8 1592 20.0 302-326 38-41 150
N42SH 1280-1320 12.8-13.2 971 12.2 1592 20.0 318-342 40-43 150
N45SH 1320-1370 13.2-13.7 979 12.3 1592 20.0 342-366 43-46 150
N48SH 1360-1420 13.6-14.2 995 12.5 1592 20.0 358-390 45-49 150
N50SH 1390-1440 13.9-14.4 1043 13.1 1592 20.0 366-398 46-50 150
N52SH 1420-1470 14.2-14.7 1075 13.5 1512 19.0 382-414 48-52 140
N28UH 1020-1080 10.2-10.8 764 9.6 1990 25.0 207-231 26-29 180
N30UH 1080-1130 10.8-11.3 812 10.2 1990 25.0 223-247 28-31 180
N33UH 1130-1170 11.3-11.7 852 10.7 1990 25.0 247-271 31-34 180
N35UH 1170-1220 11.7-12.2 860 10.8 1990 25.0 263-287 33-36 180
N38UH 1220-1250 12.2-12.5 876 11.0 1990 25.0 287-310 36-39 180
N40UH 1250-1280 12.5-12.8 915 11.5 1990 25.0 302-326 38-41 180
N42UH 1270-1320 12.7-13.2 971 12.2 1990 25.0 310-342 39-43 180
N44UH 1320-1360 13.2-13.6 995 12.5 1990 25.0 334-358 42.0-45 180
N45UH 1330-1380 13.3-13.8 1003 12.6 1910 24.0 338-366 42.5-46 170
N28EH 1040-1090 10.4-10.9 780 9.8 2388 30.0 207-231 26-29 200
N30EH 1080-1130 10.8-11.3 812 10.2 2388 30.0 223-247 28-31 200
N33EH 1130-1170 11.3-11.7 820 10.3 2388 30.0 247-271 31-34 200
N35EH 1170-1220 11.7-12.2 836 10.5 2388 30.0 263-287 33-36 200
N38EH 1220-1250 12.2-12.5 915 11.5 2388 30.0 279-310 35-39 200
N40EH 1250-1300 12.5-13.0 947 11.9 2388 30.0 302-326 38-41 200
N42EH 1280-1330 12.8-13.3 971 12.2 2308 29.0 318-342 40-43 190
N28AH 1020-1090 10.2-10.9 780 9.8 2786 35.0 199-231 25-29 220
N30AH 1070-1130 10.7-11.3 812 10.2 2786 35.0 215-247 27-31 220
N33AH 1110-1170 11.1-11.7 836 10.5 2786 35.0 239-271 30-34 220
N35AH 1180-1220 11.8-12.2 891 11.2 2786 35.0 267-291 33.5-36.5 220
N38AH 1220-1270 12.2-12.7 923 11.6 2706 34.0 287-314 36-39.5 210

*Note: The maximum operating temperature and other performance characteristics of a magnet are dependent on the specific material type, magnetic circuit, and application conditions. The values provided above are guidelines for each material type under standard conditions. For example, the Curie temperature (the temperature at which a magnet loses its magnetism and cannot be remagnetized) varies significantly among different materials: Alnico magnets typically have higher Curie temperatures (e.g., 860°C for some grades), while standard neodymium magnets have a Curie temperature around 310°C (590°F). Always refer to the specific material grade and application requirements for accurate performance limits. If you need further assistance with selecting the right material or understanding the temperature limits for your specific application, please contact our technical support. Data Sheet

Applications

Neodymium magnets are widely used in the following fields:

Industrial Automation

High-performance NdFeB and ferrite magnets provide stable magnetic solutions for servo motors, sensors, and magnetic chucks.

Automotive Applications

Magnetic products are widely used in EV drive motors, sensors, and ABS systems, meeting strict automotive industry standards.

Electronics & Electroacoustics

High-fidelity magnetic materials for speakers, microphones, earphones, and smartphone vibration motors.

Renewable Energy

Magnetic solutions for wind turbines, solar inverters, and energy storage systems supporting sustainable development.

Home Appliances

Reliable magnetic products used in compressor motors, refrigerator door seals, and various small household appliances

Medical Equipment

Precision magnetic components for MRI systems, medical sensors, and laboratory automation devices.

Aerospace & Defense

High-temperature resistant magnets designed for avionics, navigation systems, and defense-grade applications.

Robotics & AI Systems

Customized magnetic components that enhance motion control precision and sensing accuracy in modern robotics.

Customization Options

We offer customized NdFeB magnet solutions tailored to your requirements.

Technical Documents

Download related documents and certificates:

NdFeB Magnet
